| Pavtek Stroker Kit Part # | SK351C>393DII9-4 |
| Stroker Kit Engine Size | 393 Cubic Inches |
| Stroke | 3.850″ |
| Bore Size | 4.030″ |
| Kit Designed For Use With | 9.200″ Deck Height Block ( OEM Cleveland & Dart/World ) |
| Crankshaft Brand | Scat |
| Crankshaft Material | 9000 Series Cast Steel |
| Crankshaft Main Journals | 351C (2.749″) |
| Crankshaft Big End Journals | LJ SBC (2.100″) |
| Crankshaft Balance | External |
| Requires Narrowed Bearings | Yes |
| Pistons | SRP FORGED |
| Piston Style | Dish Top |
| Piston Dome Volume | -13cc |
| Gudgeon Pin Diameter | SBC .927″ |
| Gudgeon Pins Supplied | Yes |
| Gudgeon Pin Fit | Floating |
| Ring Pack to Use | 1/16 1/16 3/16 |
| Rings Supplied | Yes – SPEEDPRO |
| Conrods Supplied | Yes |
| Conrod Brand | Scat |
| Beam Style | I-Beam |
| Rod Centre to Centre Length | 6.000″ |
| Bolts | 8740 |
| Rod Bolt Diameter | 7/16 |
| Main Bearings Supplied | Yes – ACL RACE SERIES |
| Big End Bearings Supplied | Yes – ACL RACE SERIES |
| LUD | 09/04/25 |
Pavtek can custom assemble a stroker kit with various combinations of Rods -Cranks & Pistons to suit your application – Call us for the best Price on our stroker kits

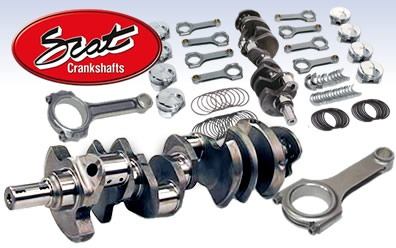

Actual item may differ from image shown
