- Fully Machined & Blueprinted Inhouse At Pavtek Since 1989
- Dyno Run In And Tuned For Best Performance & Reliability
- Packaged Priced – Heavily Discounted
- Dyno Proven ( Know Before You Buy Exactly How Much Power You’re Purchasing )
- 12 Months Unlimited Kilometers Warranty
- Australia Wide Economical Shipping
- In Stock NOW And Ready For Immediate Shipping ( NO BUILT TO ORDER )
- No waiting months and hearing excuse after excuse as to why your engine still isn’t ready
APPLICATION:
355 Holden
Silver Accelerator Engine 440 HP
(Change Over Long Engine)
This Version Of Our L3552B Comes Dyonoed With Turn Key Extras
| Pavtek Part # |
L3552B(D) |
| IN Stock Status | Nil Stock- Built to Order |
| 4 Week Delivery Time | |
| GENERAL TECH. INFO | |
| Cubic Inches |
355 (304 Stroker) |
| Ft/lbs @ RPM |
430.8 / 4050 |
| Horsepower @ RPM |
436 / 6200 |
| Fuel Required |
PULP 98 Octane |
| Camshaft Type |
Hydraulic F.T |
| Extractors Required |
1 3/4″ (Pacemaker) |
| Minimum Converter RPM |
3500 ( Minimum WOT ) |
| Best Converter RPM |
4000 |
| Maximum RPM Shift |
6200 |
| PARTS |
|
| INCLUDED: | |
| BLOCK |
|
| Block Supplied Outright |
No |
| Block Supplied | Your Block is required |
| Block CNC Machined | Yes – Inhouse |
| Main Caps | OEM – Arp Stud Kit |
| Block Partial Grouted | No |
| Welsh Plugs | Yes – Brass |
| CYLINDER HEADS | |
| Head / Brand |
OEM Holden/ VN-VT |
| Head Material |
Cast Iron- Change Over |
| Head Porting Included |
Yes |
| Head Porting / Intake |
Yes 60% – 5 Axis CNC |
| Head Porting / Exhaust | Yes 100% – 5 Axis CNC |
| Head Porting / Chambers | No |
| Valve Material / Brand | OEM / Black Valves |
| Retainer Material / Style | OEM / 7 Degree |
| Valve Locks / Brand | 7 Degree Crane |
| Valve Stem Seals – Style | OEM |
| Valve Spring Style Used | Crow Cams – Dual With Dampner |
| Valve Spring Locaters | Not Required |
| ROTATING ASSEMBLY |
|
| Crankshaft Brand/ Material | Scat Cast Steel |
| Piston Brand / Material | SpeedPro / Hypereutectic |
| Piston Type | Dish Tops |
| Piston Rings Brand | Speed Pro |
| Piston Ring Widths | 5/64 5/64 3/16 |
| Conrod Brand / Length | Scat / 5.700″ |
| Conrod Beam Style | I-Beam |
| Conrod Bolts Material | ARP 8740 |
| Conrod Bolt Diameter | 3/8 |
| Harmonic Balancer / Brand | PowerBond Street |
| Engine Balance | Internal Front & Rear |
| BEARINGS |
|
| Main Bearings | ACL H-Race Series |
| Big End Bearings | ACL H-Race Series |
| Cam Bearings | Durabond |
| CAM, LIFTERS |
|
| Cam Type / Brand | Hyd FT Tufftrided/ Pavtek |
| Lifter Type / Brand | SpeedPro- Iron Chilled |
| TIMING SET | |
| Timing Set Brand /Type | Rollmaster/ 9 Key |
| Camshaft Retaining | OEM Thrust Plate |
| INTAKE MANIFOLD | |
|
Intake Manifold Brand |
Edelbrock |
|
Intake Manifold Style |
Dual Plane |
| Intake Manifold Porting | No |
| VALVE TRAIN |
|
| Roller Rockers Brand | OEM Rockers |
| Roller Rocker Type | OEM |
| Roller Rocker Ratio | 1.65 OEM |
| Pushrods Brand | OEM |
| Pushrods Specs | OEM |
| Guide Plates – Brand | Not Required |
| GASKETS | |
| Head Gaskets Brand | Felpro |
| Intake Gaskets | Felpro |
| Rear Main Seal | Felpro |
| OILING SYSTEM | |
| Oil Pan | Aerflow HV |
| Oil Pump Pickup | Aeroflow |
|
Oil Pump |
JP |
|
Oil Pump Driveshaft |
OEM |
|
Oil System Modifications |
Yes |
| FASTENERS & DRESSUP |
|
| Head Bolts / Head Studs | OEM Bolts |
| Main Bolts / Main Studs | Arp Stud Kit |
| Rocker Studs | Not Required |
| Intake Manifold Bolts | Yes – Capscrews |
| Harmonic Balancer Bolt | OEM |
| Rocker Covers | Not Included |
| Timing Case Cover | Not Included |
| Timing Pointer | Not Included |
| TURN KEY EXTRAS INCLUDED |
|
|
Engine Run In On Dyno |
Yes |
|
Engine Tuned On Dyno |
Yes |
|
Spark Plugs Supplied |
Yes |
|
Oil Filter & Oil For Dyno |
Yes |
|
Oil Filter Mount |
Oem |
| Carby | 750 Cfm 4150 SA Street HP Carby |
| Carby Spacer | Not Required |
| Carby Bolts | Supplied |
| Ignition System | Ice Complete System – 16 curves |
| Ignition Rev Limiter | No – Optional |
| Distributor Clamp Supplied | Yes – Aeroflow |
| Fuel Pump Block Supplied | Not Supplied |
| Dipstick Supplied | Yes |
| Bellhousing Dowels Supplied | No |
| Coolant Bleed Kit | No |
| Aeroflow Engine Cradle On Wheels | Yes – Aeroflow |
| Pavtek Free T-Shirt | Yes – Specify Size When Placing Order |
| Pavtek Rear Window Decal | Yes – 500 x 162MM |
PRICE INCLUDES CONVERTING REAR MAIN SEAL TO SBC REAR MAIN SEAL
| Discounted Package Price: | $15,082.52 |
| JOB / BUILD # | L3552B(D) |
Price Based On Change Over – Customer To Supply Long Engine
Power Figures Were Produced With Pacemaker 1 3/4 Tri Y Pipes
Price Does Not Include Freight Charges
If Ordered Online We Will Contact You With A Price For Freight ASAP

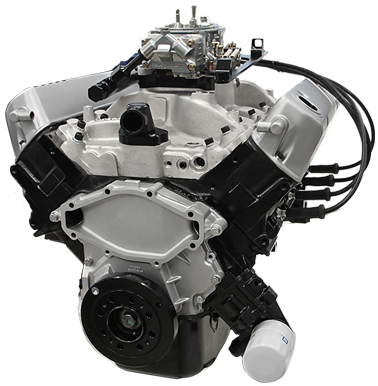

Image May Be Shown With Optional Available Extras
