- Fully Machined & Blueprinted Inhouse At Pavtek Since 1989
- Dyno Run In And Tuned For Best Performance & Reliability
- Packaged Priced – Heavily Discounted
- Dyno Proven ( Know Before You Buy Exactly How Much Power You’re Purchasing )
- 12 Months Unlimited Kilometers Warranty
- Australia Wide Economical Shipping
- In Stock NOW And Ready For Immediate Shipping
- No waiting months and hearing excuse after excuse as to why your engine still isn’t ready
APPLICATION:

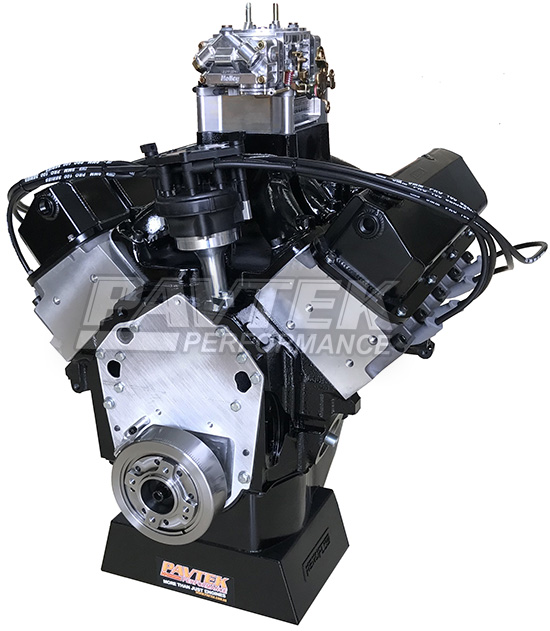

393 Ford Cleveland
Gold Pro Plus Engine 650+HP
Internally Balanced / CNC Ported Heads
| Pavtek Part # | L393C3/A2 |
| IN Stock Status | WIP – Taking Orders Now |
| GENERAL TECH. INFO | |
| Cubic Inches |
393 (351C Stroker) |
| Ft/lbs @ RPM |
533 / 5200 ( 28886 ) |
| Horsepower @ RPM |
652 / 7250 ( 28886 ) |
| Fuel Required |
PULP 98 Octane |
| Camshaft Type |
Solid FT |
| Extractors Required |
2″ 4 into 1 (Pacemaker) |
| Minimum Converter RPM |
4800 ( Minimum WOT ) |
| Best Converter RPM |
5300 |
| Maximum RPM Shift |
7500 |
| PARTS |
|
| INCLUDED: | |
| BLOCK |
|
| Block Supplied Outright |
Yes – Change Over Is Also Available |
| Block Supplied | OEM Seasoned Block |
| Block CNC Machined | Yes – Inhouse |
| Main Caps | Pavtek Billet Main Stud Girdle |
| Block Partial Grouted | Yes Partially |
| Welsh Plugs | Yes – Brass |
| CYLINDER HEADS | |
| Head / Brand |
CHI |
| Head Material |
Alloy |
| Head Porting Included |
Yes |
| Head Porting / Intake |
Yes 100% 5 Axis Inhouse |
| Head Porting / Exhaust | Yes 100% 5 Axis Inhouse |
| Head Porting / Chambers | Yes 100% 5 Axis Inhouse |
| Valve Material / Brand | Stainless Steel /Ferrea |
| Retainer Material / Style | Chrome Moly /10 Degree |
| Valve Locks / Brand | 10 Degree Comp Cams |
| Valve Stem Seals – Style | Teflon- Crane |
| Valve Spring Style Used | Isky – Dual With Dampner |
| Valve Spring Locaters | Yes |
| ROTATING ASSEMBLY |
|
| Crankshaft Brand/ Material | Drp / 4340 Forged Steel |
| Piston Brand / Material | Srp / Forged |
| Piston Type | Flat Tops |
| Piston Rings Brand | Speed Pro |
| Piston Ring Widths | 1/16 1/16 3/16 |
| Conrod Brand / Length | Scat / 6.000″ |
| Conrod Beam Style | H-Beam |
| Conrod Bolts Material | ARP 8740 |
| Conrod Bolt Diameter | 7/16 |
| Harmonic Balancer / Brand | Romac Race |
| Engine Balance | Internal Front & Rear |
| BEARINGS |
|
| Main Bearings | ACL H-Race Series |
| Big End Bearings | ACL H-Race Series |
| Cam Bearings | Clevlitte HP |
| CAM, LIFTERS |
|
| Cam Type / Brand | Solid Flat Tapp./ Custom Pavtek |
| Lifter Type / Brand | Comp Cams – Refaced |
| TIMING SET | |
| Timing Set Brand /Type | Rollmaster/ 9 Key |
| Camshaft Retaining | Aeroflow Thrust Plate |
| INTAKE MANIFOLD | |
| Intake Manifold Brand | CHI |
| Intake Manifold Style | Single Plane |
| Intake Manifold Porting | Yes – CNC & Hand Porting |
| VALVE TRAIN |
|
| Roller Rockers Brand | Scorpion |
| Roller Rocker Type | 7/16 Stud Mount |
| Roller Rocker Ratio | 1.73 |
| Pushrods Brand | Trend 4340 Chrome Moly |
| Pushrods Specs | .080″ Wall / 1 Piece / 210 Radius |
| Guide Plates – Brand | Comp Cams |
| GASKETS | |
| Head Gaskets Brand | Felpro O-Ring |
| Intake Gaskets | CHI |
| Rear Main Seal | Felpro 1 Piece Competition |
| OILING SYSTEM | |
| Oil Pan | Aeroflow HV |
| Oil Pump Pickup | Mellings |
| Oil Pump | Mellings |
| Oil Pump Driveshaft | ARP HD |
| FASTENERS & DRESSUP |
|
| Head Bolts / Head Studs | Pavtek Capscrews |
| Main Bolts / Main Studs | Arp Stud Kit |
| Rocker Studs | Arp HD |
| Intake Manifold Bolts | BLK Capscrews |
| Harmonic Balancer Bolt | Arp |
| Rocker Covers | Aeroflow Sheet Metal /Black |
| Timing Case Cover | Pavtek Billet With Adj. Pointer |
| Timing Pointer | Pavtek Billet / Adjustable |
| TURN KEY EXTRAS INCLUDED |
|
| Engine Run In On Dyno | Yes |
| Engine Tuned On Dyno | Yes |
| Spark Plugs Supplied | Yes |
| Oil Filter & Oil For Dyno | Yes |
| Oil Filter Mount | Oem – Yes |
| Carby | 950 Cfm 4150 SA Street HP Carby |
| Carby Spacer | Pavtek Billet 2″ Ported |
| Carby Bolts | Arp |
| Ignition System | Ice Complete System – 128 curves |
| Ignition Rev Limiter | Yes / 1 Step |
| Distributor Clamp Supplied | Pavtek Billet |
| Fuel Pump Block Supplied | Pavtek Billet |
| Dipstick Supplied | Yes – Chrome |
| Bellhousing Dowels Supplied | Yes |
| Coolant Bleed Kit | No |
| Aeroflow Engine Cradle On Wheels | Yes |
| Pavtek Free T-Shirt | Yes – Specify Size When Placing Order |
| Pavtek Rear Window Decal | Yes – 500 x 162MM |
| Package Price: | $28,695 |
| JOB / BUILD # | C28886 |
Price Does Not Include Freight Charges
If Ordered Online We Will Contact You With A Price For Freight ASAP
Image May Be Shown With Optional Available Extras
Engine Comes With Billet Timing Cover With Billet Adjustable Timing Pointer
PLEASE CALL 03 9408 7726 IF YOU NEED ASSISTANCE
OR EMAIL YOUR ENQUIRY TO pavtek@iprimus.com.au
