- Fully Machined & Blueprinted Inhouse At Pavtek Since 1989
- Dyno Run In And Tuned For Best Performance & Reliability
- Packaged Priced – Heavily Discounted
- Dyno Proven ( Know Before You Buy Exactly How Much Power You’re Purchasing )
- 12 Months Unlimited Kilometers Warranty
- Australia Wide Economical Shipping
- In Stock NOW And Ready For Immediate Shipping
- No waiting months and hearing excuse after excuse as to why your engine still isn’t ready
APPLICATION:
393 Ford Cleveland
“HR” Silver Acc. Plus Engine 550+ HP
(Dynoed With Turn Key Extras)
This newly designed package was developed as the next power level up from our very popular 500 HP (L393C101H) Silver Accelerator Package. Now you can have an extra 50 Horses UNDER the bonnet whilst retaining an excellent idle quality. This combo uses a mild hydraulic roller camshaft, is “very” unassuming and driveable. Perfect for a daily driver or Sunday cruiser, but still packs a serious punch for when you jump on the gas pedal and want to have some fun. This package has ran 11.15 @ 120.76 in an XY Sedan all under the bonnet…. not even a shaker was used.
| Pavtek Part # | L393C101HR |
| IN Stock Status | IN STOCK NOW |
| GENERAL TECH. INFO | |
| Cubic Inches |
393 (351C Stroker) |
| Ft/lbs @ RPM |
512 / 4600 ( 29570) |
| Horsepower @ RPM |
559 / 6700 ( 29570) |
| Fuel Required |
PULP 98 Octane |
| Camshaft Type |
Hydraulic Roller |
| Extractors Required |
1 7/8″ 4 into 1 (Pacemaker) |
| Minimum Converter RPM |
4000 ( Minimum WOT ) |
| Best Converter RPM |
4600 |
| Maximum RPM Shift |
6700 |
| PARTS |
|
| INCLUDED: | |
| BLOCK |
|
| Block Supplied Outright |
Yes – Change Over Is Also Available |
| Block Supplied | OEM Seasoned Block |
| Block CNC Machined | Yes – Inhouse |
| Main Caps | Pavtek Billet Main Stud Girdle |
| Block Partial Grouted | Yes Partially |
| Welsh Plugs | Yes – Brass |
| CYLINDER HEADS | |
| Head / Brand |
CHI 2V |
| Head Material |
Alloy |
| Head Porting Included |
Yes |
| Head Porting / Intake |
CNC Port to 1240 Gasket |
| Head Porting / Exhaust | Hand Blend Of Bowl |
| Head Porting / Chambers | Yes 100% |
| Valve Material / Brand | Stainless Steel /Ferrea |
| Retainer Material / Style | Chrome Moly / 10 Degree |
| Valve Locks / Brand | 10 Degree Comp Cams |
| Valve Stem Seals – Style | Teflon- Crane |
| Valve Spring Style Used | Isky – Dual With Dampner |
| Valve Spring Locaters | Yes |
| ROTATING ASSEMBLY |
|
| Crankshaft Brand/ Material | Scat / 9000 Cast Steel |
| Piston Brand / Material | Srp / Forged |
| Piston Type | Dish Tops |
| Piston Rings Brand | Speed Pro – Hastings |
| Piston Ring Widths | 1/16 1/16 3/16 |
| Conrod Brand / Length | Scat / 6.000″ |
| Conrod Beam Style | H-Beam |
| Conrod Bolts Material | ARP 8740 |
| Conrod Bolt Diameter | 7/16 |
| Harmonic Balancer / Brand | PowerBond Street |
| Engine Balance | External Front & Rear |
| BEARINGS |
|
| Main Bearings | ACL H-Race Series |
| Big End Bearings | ACL H-Race Series |
| Cam Bearings | Clevlitte or Durabond |
| CAM, LIFTERS |
|
| Cam Type / Brand | Hyd. Roller/ Custom Pavtek |
| Lifter Type / Brand | Johnson Short Travel-Vertical Tie Bar |
| TIMING SET | |
| Timing Set Brand /Type | Rollmaster/ 9 Key |
| Camshaft Retaining | Aeroflow Thrust Plate |
| INTAKE MANIFOLD | |
| Intake Manifold Brand | DRP |
| Intake Manifold Style | Low Rise Dual Plane /RPM Airgap |
| Intake Manifold Porting | No |
| VALVE TRAIN |
|
| Roller Rockers Brand | Scorpion |
| Roller Rocker Type | 7/16 Stud Mount |
| Roller Rocker Ratio | 1.73 |
| Pushrods Brand | Trend 4340 Chrome Moly |
| Pushrods Specs | .080″ Wall / 1 Piece / 210 Radius |
| Guide Plates – Brand | Comp Cams |
| GASKETS | |
| Head Gaskets Brand | Felpro |
| Intake Gaskets | Felpro 1240 |
| Rear Main Seal | Felpro – 1 Piece |
| OILING SYSTEM | |
| Oil Pan | Aeroflow HV |
| Oil Pump Pickup | Mellings |
| Oil Pump | Mellings |
| Oil Pump Driveshaft | ARP HD |
| FASTENERS & DRESSUP |
|
| Head Bolts / Head Studs | HD Capscrews/ ARP Washers |
| Main Bolts / Main Studs | Arp Stud Kit |
| Rocker Studs | Arp HD |
| Intake Manifold Bolts | BLK Capscrews |
| Harmonic Balancer Bolt | Arp |
| Rocker Covers | Aeroflow Sheet Metal /Black |
| Timing Case Cover | Pavtek Billet With Adj. Pointer |
| Timing Pointer | Pavtek Billet / Adjustable |
| TURN KEY EXTRAS INCLUDED |
|
| Engine Run In On Dyno | Yes |
| Engine Tuned On Dyno | Yes |
| Spark Plugs Supplied | Yes |
| Oil Filter & Oil For Dyno | Yes |
| Oil Filter Mount | Oem – Yes |
| Carby | 750 Cfm 4150 SA Street HP Carby |
| Carby Spacer | Not Required |
| Carby Bolts | Zinc Plated |
| Ignition System | Ice Complete System – 128 Curves |
| Ignition Rev Limiter | Yes |
| Distributor Clamp Supplied | Pavtek Billet |
| Fuel Pump Block Supplied | Pavtek Billet |
| Dipstick Supplied | Yes – Chrome |
| Bellhousing Dowels Supplied | Yes |
| Coolant Bleed Kit | No |
| Aeroflow Engine Cradle On Wheels | Yes |
| Pavtek Free T-Shirt | Yes – Specify Size When Placing Order |
| Pavtek Rear Window Decal | Yes – 500 x 162MM |
| Package Price: | $28,495 |
| JOB / BUILD # | 29570 |
| LUD | 01-06-2026 |
Price Does Not Include Freight Charges
If Ordered Online We Will Contact You With A Price For Freight ASAP

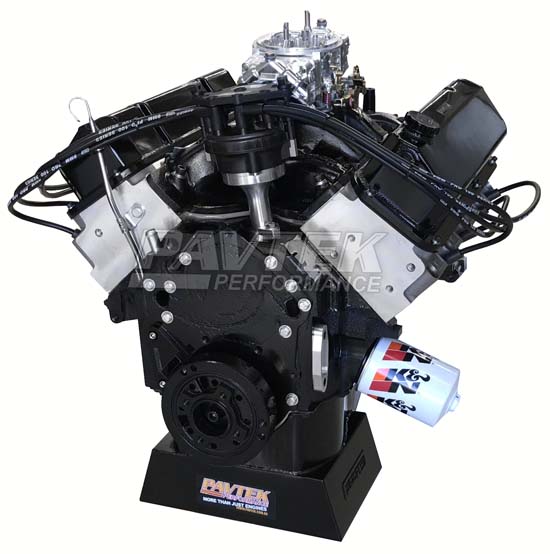

Image May Be Shown With Optional Available Extras
